3.7 - 4.8 µm spectral range
1280 x 1024 FPA
15 µm pixel pitch
MCT technology

Features

  • High Resolution
  • Best DRI Range on the Battlefield
  • High Reliability
FPA Up to 90 K
Operability 99.8%
NETD 19mK

Description

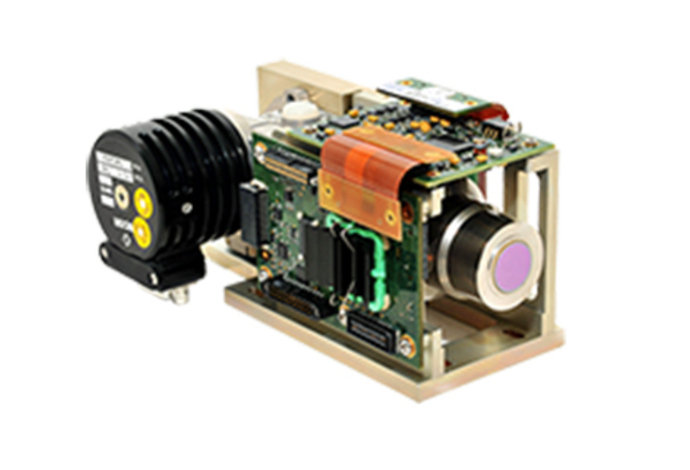

MiTIE Jupiter MW sets the standard for MWIR SXGA Camera Core.

With the fusion of high-performance, high-resolution and high-reliability, Jupiter MW allows you to have the best DRI range on the battlefield.



The MiTIE Series of miniature thermal imaging engines are designed for OEM and system integrators that wish to incorporate a small, lightweight, low power cooled camera engine into their electro-optical system.



The MiTIE cores are based on high performance Mercury Cadmium Telluride (MCT) or Indium Antimonide (InSb) Integrated Detector/Dewar/Cooler Assemblies and are available in several configurations having MW or LW spectral responses and in various array sizes.



The MiTIE cores include camera control and cooler electronics and produce corrected analog, HDMI, and 14-bit Camera Link digital video.  Communication is via USB or Camera Link interface.  Because of their, lightweight and low power consumption, the MiTIE camera cores are ideal for applications that have demanding SWaP (space/weight power) constraints.



Documentation

MiTIE Data Sheet
