8 – 14 µm spectral range
80 x 80
34 µm pitch
Microbolometer

Features

  • 30Hz Frame Rate
  • Lens Flexibility (HFOV): 35°, 60°, 90°, 120°
  • Shutter-less algorithmic NUC continuous correction
  • Lens or no lens options
  • 30 mm length x 31 mm width x 32 mm height package

Description

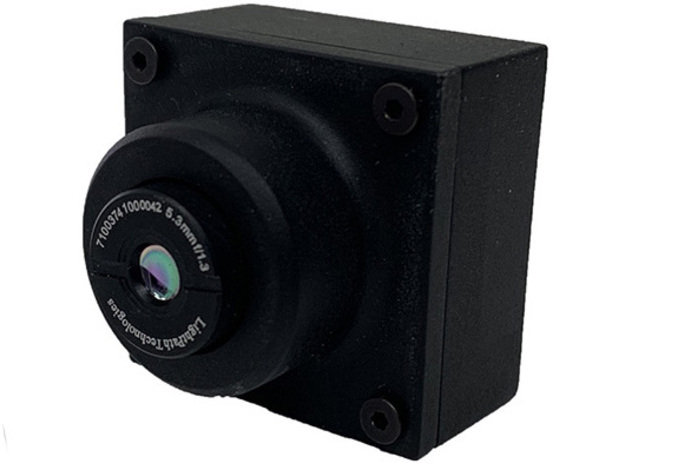

Utilizing the 80 x 80 LYNRED Micro80 microbolometer technology, the ATOM C80 is a low cost, compact, low power, shutter-less thermal imaging camera core suitable for a variety of applications. Two modular interfaces (USB and SPI) are available. Additionally, this camera core is equipped with on board NUC continuous algorithmic correction requiring no shutters or periodic correction.

The ATOM C80 has multiple fields of view, (35°, 60°, 90°, & 120°) allowing for a large area to be covered. It is suitable for a variety of applications including Security, Automotive, UAVs, Livestock Monitoring, and more.

Documentation

ATOM C80
