8 - 14 µm spectral range
320 x 240 FPA
12 µm pixel pitch
Microbolometer technology


  • Plug and Play (ready to integrate with or without lens)
  • SWaP optimized
  • Enhanced image processing
  • High quality images
  • Fast object detection
  • Rugged, compact and lightweight
  • Longterm reliability
  • Ideal for use in weapon sights (TWS/RWS), wearables, handheld imagers, vehicle obstacle detection (UAV/UAG) and general surveillance (LSA)





High Frame rate 30 Hz
Thermal time constant <10 ms
Thermal sensitivity <60 mK
Dimensions 24x24x18^3

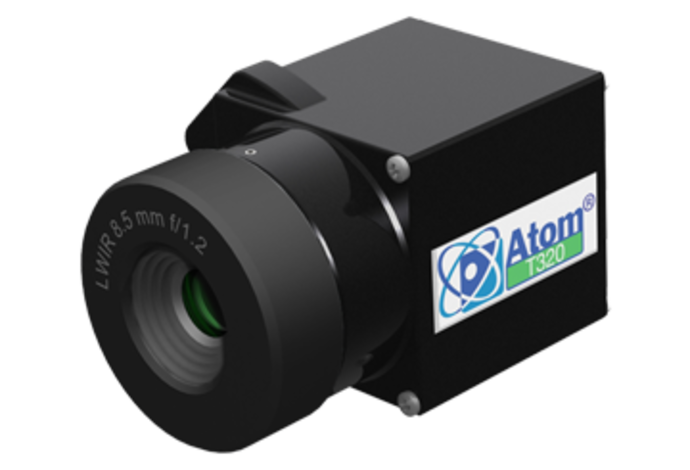

The Atom T320 camera core has been designed as a cost effective, high quality  thermal imager developed for low latency and low power consumption using advanced components and on-board processing.  The Atom T320, operating in the LWIR spectral range,  has the advantage of being compact, light and easy to integrate, making it an ideal OEM solution for many types of  products including thermal imaging sights (handheld or rifle),  wearables, handheld thermal imaging cameras, vehicle obstacle detection, general surveillance and others.

It’s high frame rate, low thermal constant, thermal sensitivity and choice of additional lenses provides the sharp detail and movement fluidity needed to identify and follow a human object from distances ranging from approximately 780 to 1740 feet (240m-530m).


Atom® T320 Data Sheet
