Shutterless Imaging
320 x 240
12 µm pixel pitch
Microbolometer Technology


  • Embedded Image Correction
  • Continuous Imaging
  • Accelerate your camera development
Sensor Performance: NETD <60mK
Frame Rate 60 Hz Full Frame
Power Dissipation <400 mW
Packaging: ATI320S 16x16x4.5 mm; < 3g
Packaging: ATI320L 16x16x17.5 mm; < 7g
Time to First Image < 4 seconds


Compact-sized thermal imaging component with embedded image correction and shutterless imaging: a diruptive design to meet demanding camera needs.

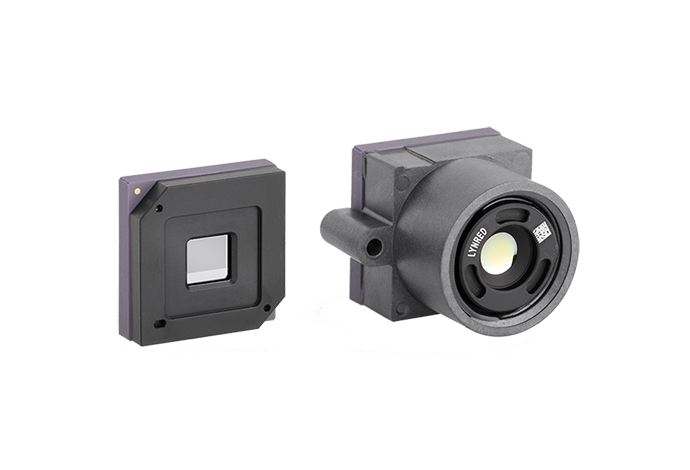

The Advanced Thermal Imager, ATI320, provides a versatile and performance driven solution for thermal imaging applications.

Designed especially for high volume integration and automatic handling, ATI320 offers camera manufactureers an unmatched, flexible, easy-to-use device.

Power-on and enjoy the video stream.


ATI320 Data Sheet
