640 x 480
17 µm pixel pitch
VGA
Features
- Greenhouse gases detection: CH4, SF6, SO2 and refrigent
- Continuous emissions monitoring
- High sensitivity for early-stage leak detection
Battery Consumption
Low power consumption < 130 mW
Frame Rate
60Hz
Thermal Sensitivity
< 30 mK (f/ 1, 300K, 30Hz)
Operating Temperature
[-40°C; +85°C]
Description

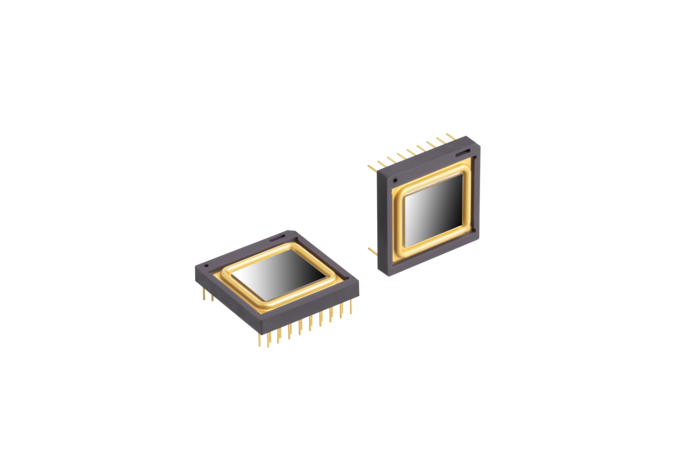

The uncooled detector PICO640S BB 7-14T provides high sensitivity to optimize your LDAR (Leak Detection and Repair) practice.
Built on proven technology, it limits development costs and shorten time to market.
