640 x 512
15 µm pixel pitch
MWIR
Features
- High End Algorithms
- Embedded with PlugUp™
- Unique Electrical Interface for C&CE
Spectral Response
3.6 to 4.2μm
FPA Operating Temperature
Up to 150 K
Sensor Performance: NETD
< 31 mK (27°C, 50%WF, f/4)
Frame Rate
Up to 60Hz
Description

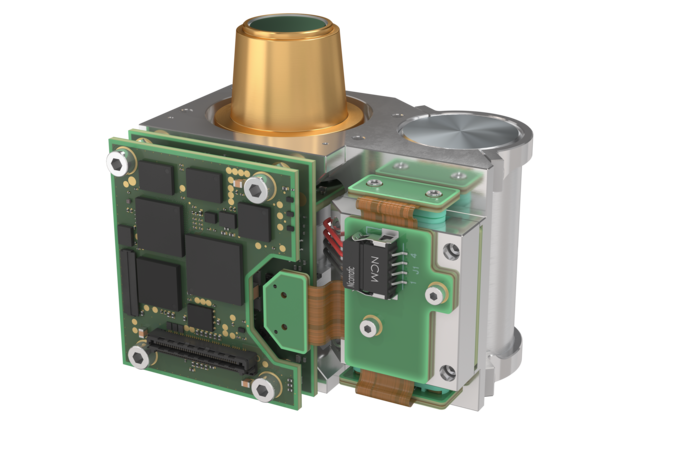

The ATI GALATEA MW SL™ (Advanced Thermal Imager) is a SWaP module that streamlines camera development for diverse applications such as UxS (Unmanned systems) and surveillance.
The ATI GALATEA MW SL™ incorporates a proven, high performance LYNRED thermal sensor combined with advanced image algorithms, ensuring the delivery of high-quality thermal images.
