3.7 - 4.8 µm spectral range
1280 x 720 FPA
10 µm pixel pitch
MCT technology

Features

  • Functionality and Performance
  • High Definition 10µm Resolution
  • Enhanced Image Processing
  • Integrated Optics
  • Turnkey OEM solution
  • Notch (CO2) Filter Option
Fully corrected imaging
ROIC functionalities Extended dynamic range
FOV F2 & F4 optics support for varied applications
Frame rate Up to 85 Hz full frame rate
Internal / External sync and clock
Symbology overlay
MTBF Up to 18,000 hours ( varies by cooler & environment )
Notch (Noise Reduction) Filter Option CO2 Filter Option increases camera performance contrast & gains +5% to +10% range increase

Description

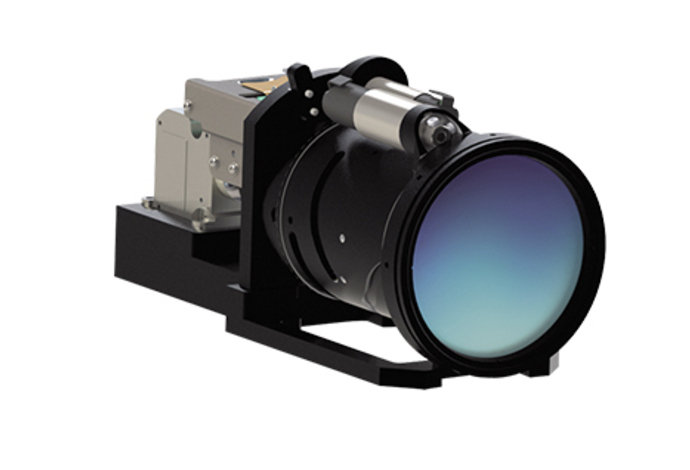

The LYNRED USA MiTIE Plus Series of Infrared Imaging Engines represents infrared camera core integration and flexibility at its highest level. Offering advantages of cooled technology, advanced electronics, comprehensive image post processing and extensive I/O options, the MiTIE Plus engne solutions are supplied as a NRE-free plug and play system.

The MiTIE Plus Series harnesses the full performance of the state-of-the-art Lynred MWIR detectors and long life cooler assemblies. The SWaP optimized camera cores incorporate powerful electronics in support of their feature-rich functions. Lynred USA's total lens integration (TLI) provides seamless full lens control, including autofocus, for a variety of continuous zoom lenses.

The MiTIE Plus delivers excellent image quality with high frame rates and are ideal for integration into intelligence, surveillance & reconnaissance (ISR) systems, gimbals, and other platforms requiring high performance MWIR imaging.

Documentation

CO2 Notch Filter Brochure
MiTIE Plus Datasheet
